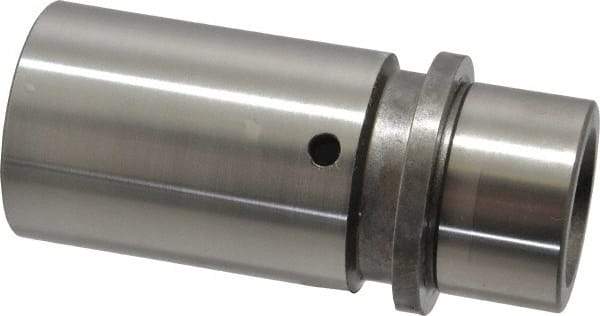

Dayton Lamina - 1" ID x 3-15/16" OAL, Steel, Die & Mold Shoulder Bushing - Extra Long Shoulder, 1.72" Bottom OD, 1-1/2" Top OD, 1.845" Collar OD, 3" Under Collar, 15/16" Above Collar
Item #: 03224854
Brand: Dayton Lamina
Model #: 6-08-56
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Material | Steel |
| Inside Diameter (Inch) | 1 |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 3-15/16 |
| Overall Length (Decimal Inch) | 3.9375 |
| Body Type | Extra-Long Shoulder |
| Bottom Outside Diameter (Decimal Inch) | 1.7200 |
| Top Outside Diameter (Inch) | 1-1/2 |
| Top Outside Diameter (Decimal Inch) | 1.5000 |
| Attachment Method | Demountable |
| Lubrication Type | Non-Self Lubricating |
| Bushing Type | Friction |
| Collar Outside Diameter (Decimal Inch) | 1.8450 |
| Length Above Collar (Inch) | 15/16 |
| Length Under Collar (Inch) | 3 |
| Clamp Compatibility | 6-90-1 |
