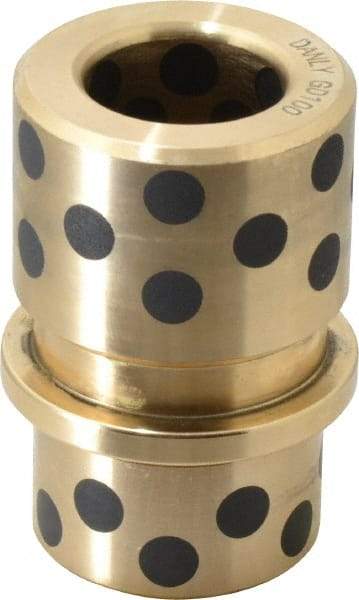

Dayton Lamina - 1" ID x 2-11/16" OAL, Cast Aluminum Bronze, Die & Mold Shoulder Bushing - Shoulder, 1-27/32" Bottom OD, 1-1/2" Top OD, 1-3/4" Under Collar, 1-3/4" Under Collar, 15/16" Above Collar
Item #: 03221652
Brand: Dayton Lamina
Model #: GD100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Material | Cast Aluminum Bronze |
| Inside Diameter (Inch) | 1 |
| Overall Length (Inch) | 2-11/16 |
| Overall Length (Decimal Inch) | 2.6875 |
| Body Type | Shoulder |
| Bottom Outside Diameter (Inch) | 1-27/32 |
| Top Outside Diameter (Inch) | 1-1/2 |
| Top Outside Diameter (Decimal Inch) | 1.5000 |
| Attachment Method | Demountable |
| Lubrication Type | Self-Lubricating |
| Bushing Type | Friction |
| Collar Outside Diameter (Inch) | 1-3/4 |
| Length Above Collar (Inch) | 15/16 |
| Length Under Collar (Inch) | 1-3/4 |
| Clamp Compatibility | 6-90-1 |
