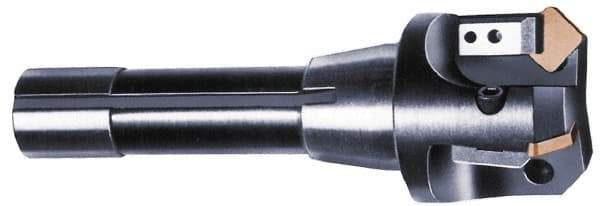

APT - 45° Lead Angle, 1" Max Cut Diam, 1" Min Cut Diam, 5/16" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 1 Insert, SPG, SPU Insert Style, 3" OAL, Straight Shank
Item #: 03119351
Brand: APT
Model #: QMD100-34
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.000 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Lead Angle | 45 |
| Overall Length (Inch) | 3 |
| Insert Style | SPG; SPU |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3125 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Clamp |
| Toolholder Style | QMD |
| Number of Flutes | 1 |
| Weldon Flat | No |
