Kennametal - 11/32" ER40 Collet - 0.0152mm TIR, 46mm OAL, 41mm Overall Diam - Exact Industrial Supply

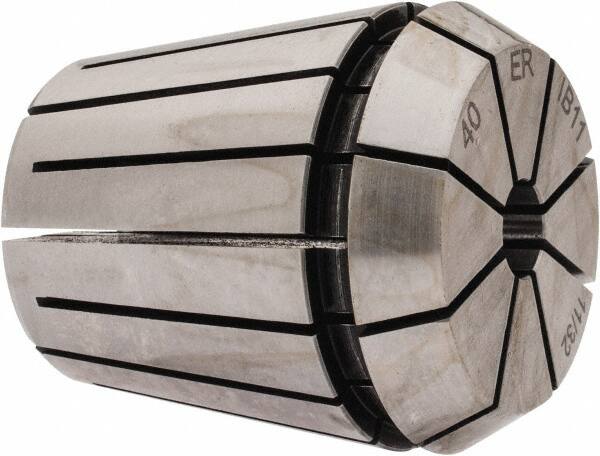

Kennametal - 11/32" ER40 Collet - 0.0152mm TIR, 46mm OAL, 41mm Overall Diam


Item #: 03094968
Brand: Kennametal
Model #: 2269957
Exact Tooling IR#: 04

Features and Benefits

ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
Product Specifications
Type ER Collet
Collet Series ER40
Size Range (Inch) 11/32
Size (Inch) 11/32
Size (Decimal Inch) 0.3438
TIR (mm) 0.0152
TIR (Decimal Inch) 0.000600
Minimum Collet Capacity (Decimal Inch) 0.3038
Maximum Collet Capacity (Decimal Inch) 0.3438
Overall Length (mm) 46.00
Overall Length (Decimal Inch) 1.8110
Overall Diameter (mm) 41.00
Overall Diameter (Decimal Inch) 1.6140
PSC Code 5136
