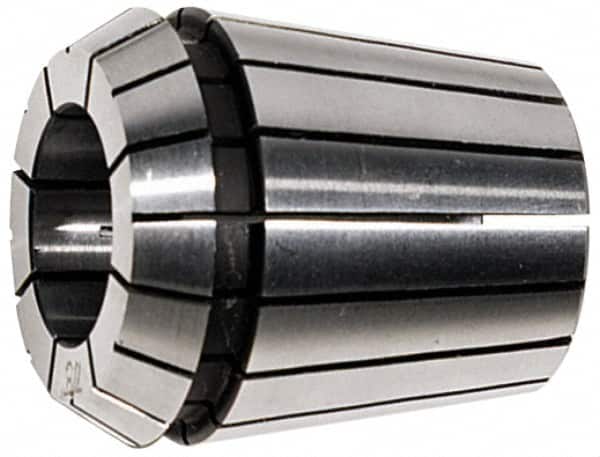

Kennametal - 3 to 4mm ER40 Collet - 0.0152mm TIR, 46mm OAL, 41mm Overall Diam
Item #: 03094695
Brand: Kennametal
Model #: 1128808
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER40 |
| Size Range (mm) | 3.00-4.00 |
| TIR (mm) | 0.0152 |
| TIR (Decimal Inch) | 0.000600 |
| Minimum Collet Capacity (mm) | 3.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.1181 |
| Maximum Collet Capacity (mm) | 4.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8110 |
| Overall Diameter (mm) | 41.00 |
| Overall Diameter (Decimal Inch) | 1.6140 |
| PSC Code | 5136 |
