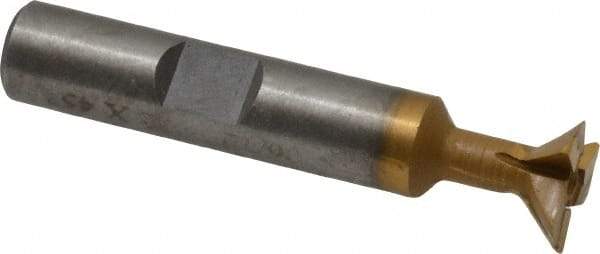

Made in USA - 1/2" Diam x 5/32" Width of Cut, 45° Included Angle, Carbide-Tipped Dovetail Cutter - 3/8" Shank Diam, 2-1/8" Overall Length, 0.02" Corner Radius, Weldon Flat, TiN Coated
Item #: 03025608
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cut faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Included Angle | 45 |
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Cutting Width (Inch) | 5/32 |
| Cutting Width (Decimal Inch) | 0.1563 |
| Material | Carbide-Tipped |
| Finish/Coating | TiN |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/8 |
| Number of Teeth | 3 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Weldon Flat | Yes |
