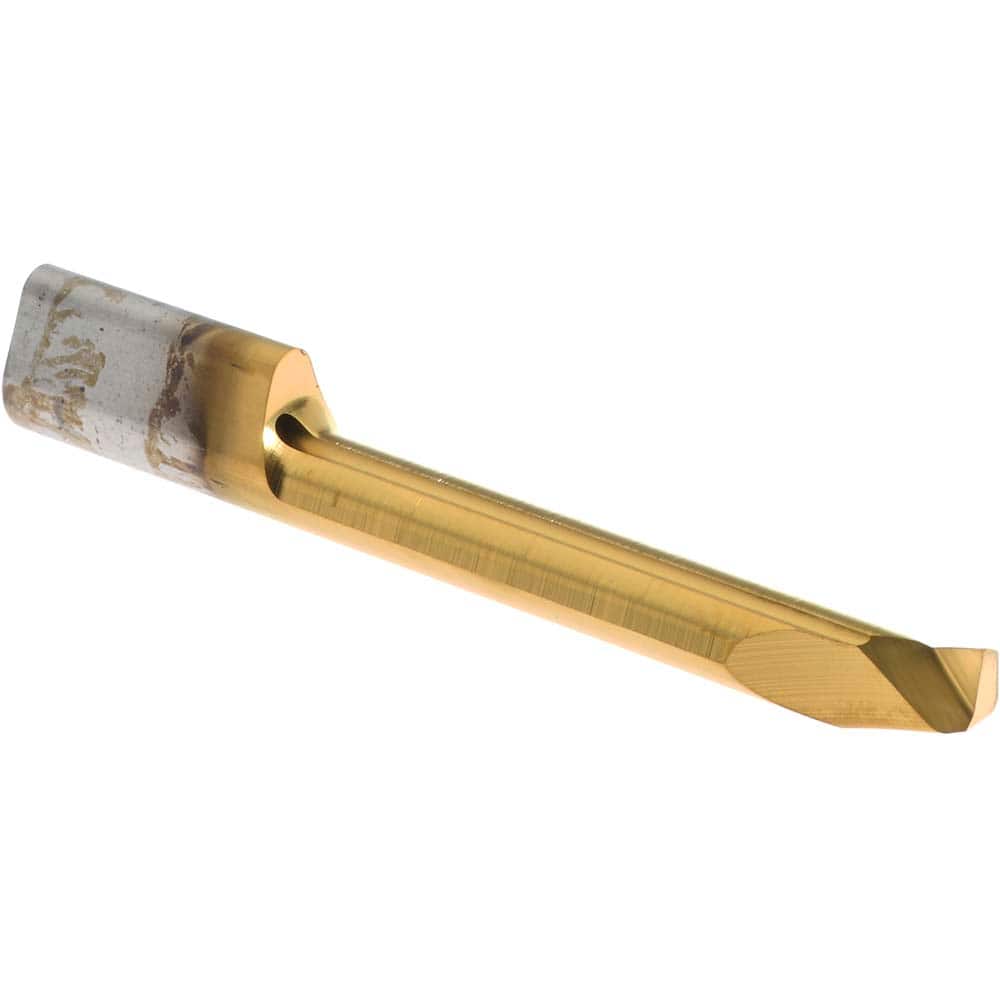

HORN - 0.197" Min Bore Diam, 1.181" Max Bore Depth, 4mm Shank Diam, Profile Boring Bar
Item #: 03018264
Brand: HORN
Model #: R105182355TN35
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.1970 |
| Maximum Bore Depth (Decimal Inch) | 1.1810 |
| Material | Solid Carbide |
| Boring Bar Type | Profile Boring |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.0000 |
| Overall Length (Decimal Inch) | 1.7720 |
| Overall Length (mm) | 45.00 |
| Cutting Direction | Right Hand |
| Finish/Coating | TiN |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer Grade | TN35 |
| Manufacturer's Grade | TN35 |
| Corner Radius (Inch) | 0.0080 |
