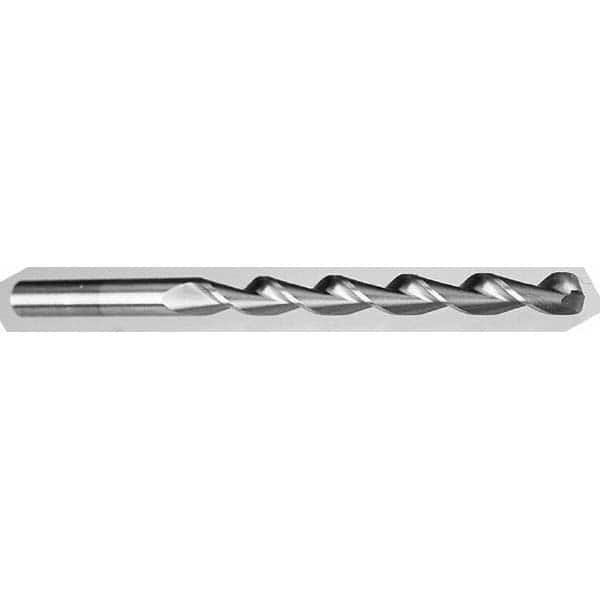

Jobber Length Drill Bit: 0.154″ Dia, 135 °, Cobalt TiAlN Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank
Item #: 02950590
Brand: Cleveland
Model #: C11423
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1540 |
| Drill Bit Size (Wire) | #23 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Flute Length (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 0.1540 |
| Overall Length (Inch) | 3-1/8 |
| Flute Length (mm) | 50.80 |
| Flute Length (Decimal Inch) | 2.0000 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Material Grade | M42 |
| Specification Designation | ANSI |
