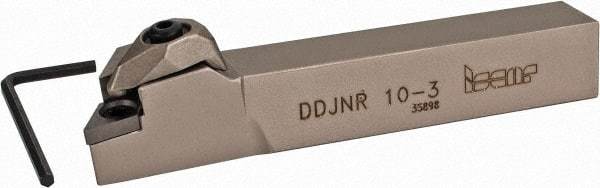

Iscar - DDJN, Right Hand Cut, 93° Lead Angle, 5/8" Shank Height x 5/8" Shank Width, Negative Rake Indexable Turning Toolholder - 4" OAL, DN..33. Insert Compatibility, Series Isoturn
Item #: 02863918
Brand: Iscar
Model #: 3602563
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DDJN |
| Rake | Negative |
| Series | Isoturn |
| Lead Angle | 93 |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 4.0000 |
| Insert Compatibility | DN..33. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.1800 |
