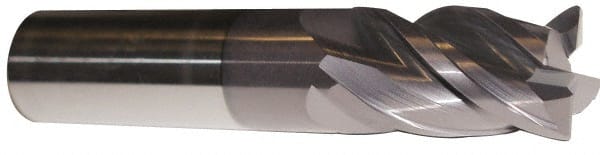

Corner Radius End Mill: 1″ Dia, 2-3/4″ LOC, 0.03″ Radius, 4 Flutes, Solid Carbide 5″ OAL, 1″ Shank Dia, 40 ° Helix, AlTiN Coated, Corner Radius End, Series 156
Item #: 02829364
Brand: ProMax
Model #: 156-46434
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (Inch) | 2-3/4 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 40 |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Corner Radius Tolerance | +0.00000 to -0.00100 in |
| Mill Diameter Tolerance | +0.000000 to -0.002000 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 156 |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.7500 |
