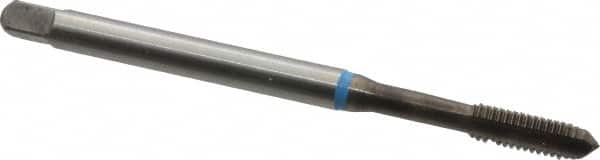

Emuge - #10-32 UNF 2BX 3 Flute Bright Finish Cobalt Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 2.756" OAL, 0.512" Thread Length, Oversize
Item #: 02767606
Brand: Emuge
Model #: BU100501.5041
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | #10-32 |
| Class of Fit | 2BX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Decimal Inch) | 2.75600 |
| Oversize | No |
| Series/List | Rekord A-H |
| Thread Length (Decimal Inch) | 0.5120 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Size (Decimal Inch) | 0.1520 |
| Material Application | Austenitic Iron; Bronze; Ferritic Iron; Gunmetal; High Speed Steel; Low Alloyed Casting Steel; Meehanite Iron; Perlitic; Spheroidal Graphite Iron; Tool Steel |
