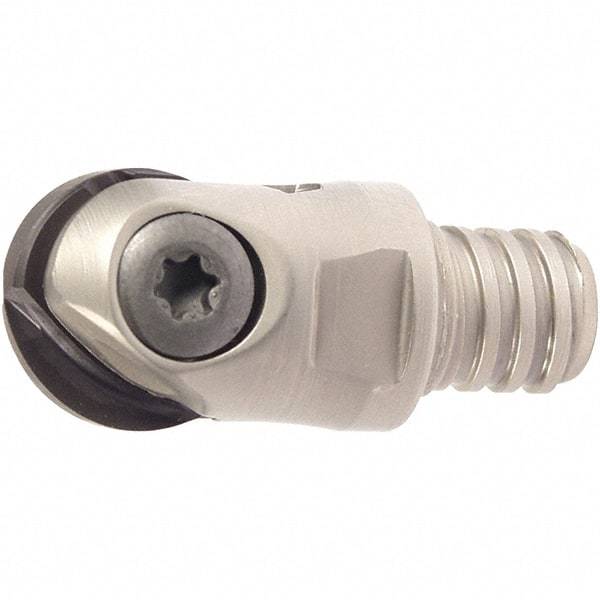

Iscar - 20mm Cut Diam, 48.8mm OAL, Indexable Ball Nose End Mill - 35mm Head Length, T12 Modular Connection, HCM-MM Toolholder, HBF-QF, HBR-QF, HCD-QF, HCR Insert
Item #: 02717163
Brand: Iscar
Model #: 3104223
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | T12 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | HBF-QF; HBR-QF; HCD-QF; HCR |
| Toolholder Style | HCM-MM |
| Series | BallPlus; Multimaster |
| Overall Length (mm) | 48.80 |
| Overall Length (Decimal Inch) | 1.9213 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 1 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Neck Diameter (Decimal Inch) | 0.7280 |
