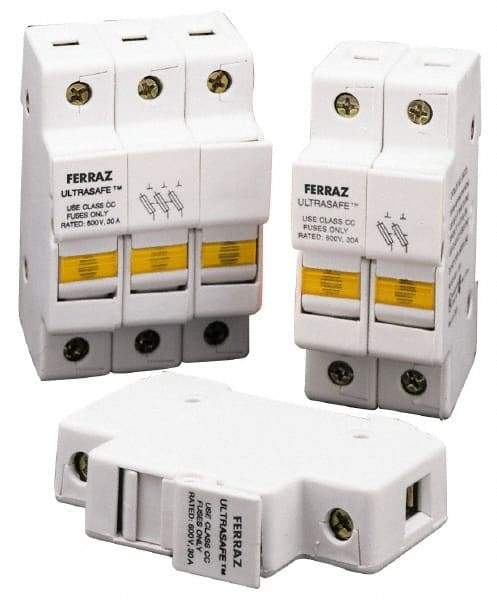

Ferraz Shawmut - 3 Pole, 600 VAC/VDC, 30 Amp, DIN Rail Mount Fuse Holder - Compatible with CC Class, 2.07 Inch Wide Fuse
Item #: 02673184
Brand: Ferraz Shawmut
Model #: USCC3IN
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Compatible Fuse Class | CC |
| Number of Poles | 3 |
| Voltage | 600 VAC/VDC |
| Amperage | 30 |
| Mounting Type | DIN Rail Mount |
| Wire Termination Type | Pressure Plate |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -40 |
| Holder Height (mm) | 78 |
| Holder Height (Decimal Inch) | 3.0700 |
| Holder Length (mm) | 59 |
| Holder Length (Decimal Inch) | 2.3200 |
| Holder Width/Diameter (mm) | 52-1/2 |
| Holder Width/Diameter (Decimal Inch) | 2.0700 |
