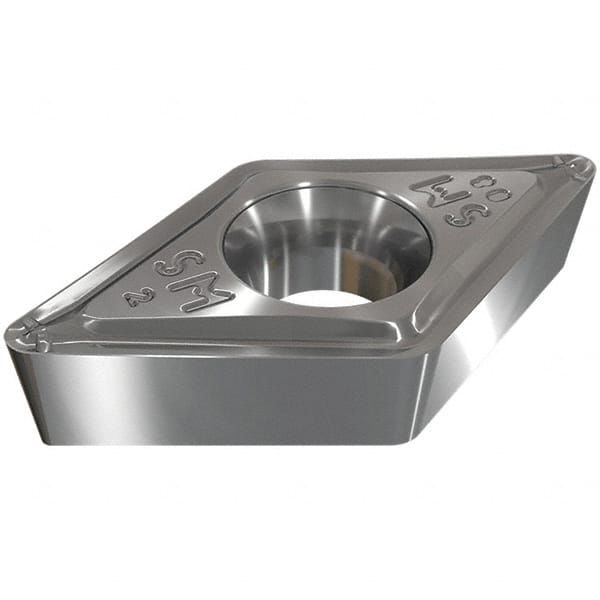

Turning Insert
Item #: 02659324
Brand: Iscar
Model #: 5595493
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 3-0 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC9007 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | Isoturn |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | SM |
| Coating/Finish | TiN; TiAlN |
