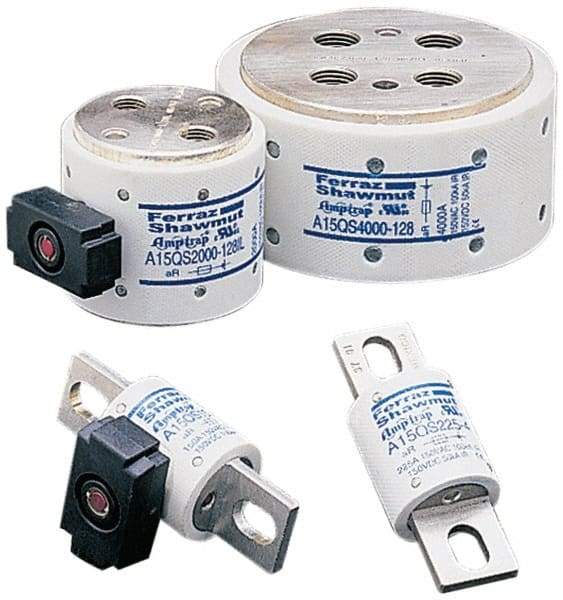

Ferraz Shawmut - 150 VAC/VDC, 80 Amp, Fast-Acting Semiconductor/High Speed Fuse - Bolt-on Mount, 2-21/32" OAL, 100 at AC, 50 at DC kA Rating, 1-1/8" Diam
Item #: 02659233
Brand: Ferraz Shawmut
Model #: A15QS80-4
Exact Tooling IR#: 04
Features and Benefits
Semiconductor/high speed fuses are designed to protect devices from overcurrents. They are quick reacting, reduce the need of other components to have high short-circuit current ratings.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Semiconductor/High Speed |
| Amperage | 80 |
| Voltage | 150 VAC/VDC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Blade |
| Overall Length (mm) | 67.60 |
| Overall Length (Inch) | 2-21/32 |
| Overall Length (Decimal Inch) | 2.6600 |
| Overall Diameter (mm) | 28.70 |
| Overall Diameter (Inch) | 1-1/8 |
| Overall Diameter (Decimal Inch) | 1.1300 |
| Material | GMG |
| Mounting Type | Bolt-on |
| Indicating Information | NonIndicating |
| Interrupting Rating (kA) | 100 @ AC; 50 @ DC |
| Standards Met | UL 198L; UL File E60314; UL Guide JFHR2; UL Recognized |
