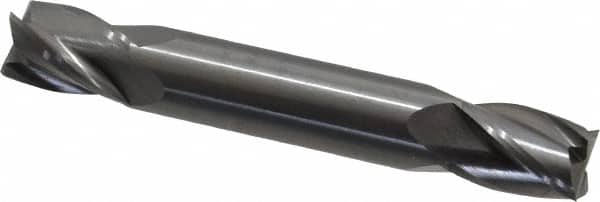

Square End Mill: 3/8'' Dia, 1/2'' LOC, 3/8'' Shank Dia, 2-1/2'' OAL, 4 Flutes, Solid Carbide Double End, Uncoated, Spiral Flute, 30 ° Helix, RH Cut, RH Flute, Series 424
Item #: 02565802
Brand: OSG
Model #: 424-3750
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1/2 |
| End Mill Material | Solid Carbide |
| End Type | Double |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 0.5000 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Stub |
| Series | 424 |
