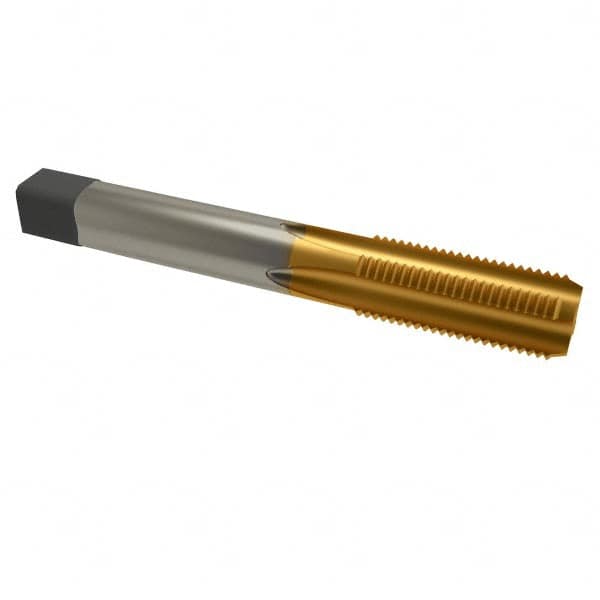

Cleveland - 3/4-10 UNC 4 Flute TiN Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 4-1/4" OAL, 2" Thread Length, H3 Limit, Oversize
Item #: 02523322
Brand: Cleveland
Model #: C55244
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 3/4-10 |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 4.25000 |
| Overall Length (Inch) | 4-1/4 |
| Overall Length (mm) | 107.95 |
| Oversize | No |
| Series/List | 1003TN |
| Thread Length (Decimal Inch) | 1.2200 |
| Thread Length (Inch) | 2 |
| Thread Length (mm) | 50.80 |
| Material Application | Alloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless |
