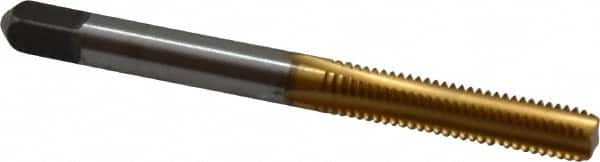

Cleveland - #12-28 UNF 2B/3B 4 Flute TiN Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 2-3/8" OAL, 15/16" Thread Length, H3 Limit, Oversize
Item #: 02523215
Brand: Cleveland
Model #: C55214
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #12-28 |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Decimal Inch) | 2.37500 |
| Overall Length (Inch) | 2-3/8 |
| Oversize | No |
| Series/List | 1003TN |
| Thread Length (Decimal Inch) | 0.5000 |
| Thread Length (Inch) | 15/16 |
| Material Application | Alloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless |
