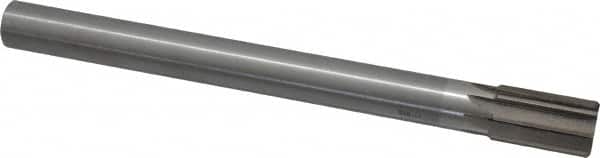

Interstate - 1" Diam, 0.873 to 0.875" Max Diam Straight Shank, 1-5/8" Flute Length, Machine Expansion Reamer - Straight Flute, 10-1/2" OAL, Right Hand Cut, 8 Flutes, High Speed Steel, Bright Finish
Item #: 02470649
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
Straight flutes are used to produce straighter side walls, but offer less chip removal than spiral flutes.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 1.0000 |
| Reamer Diameter (Inch) | 1 |
| Reamer Material | High Speed Steel |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (Inch) | 10-1/2 |
| Number of Flutes | 8 |
| Minimum Shank Diameter (Decimal Inch) | 0.8730 |
| Maximum Shank Diameter (Inch) | 7/8 |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Flute Length (Inch) | 1-5/8 |
