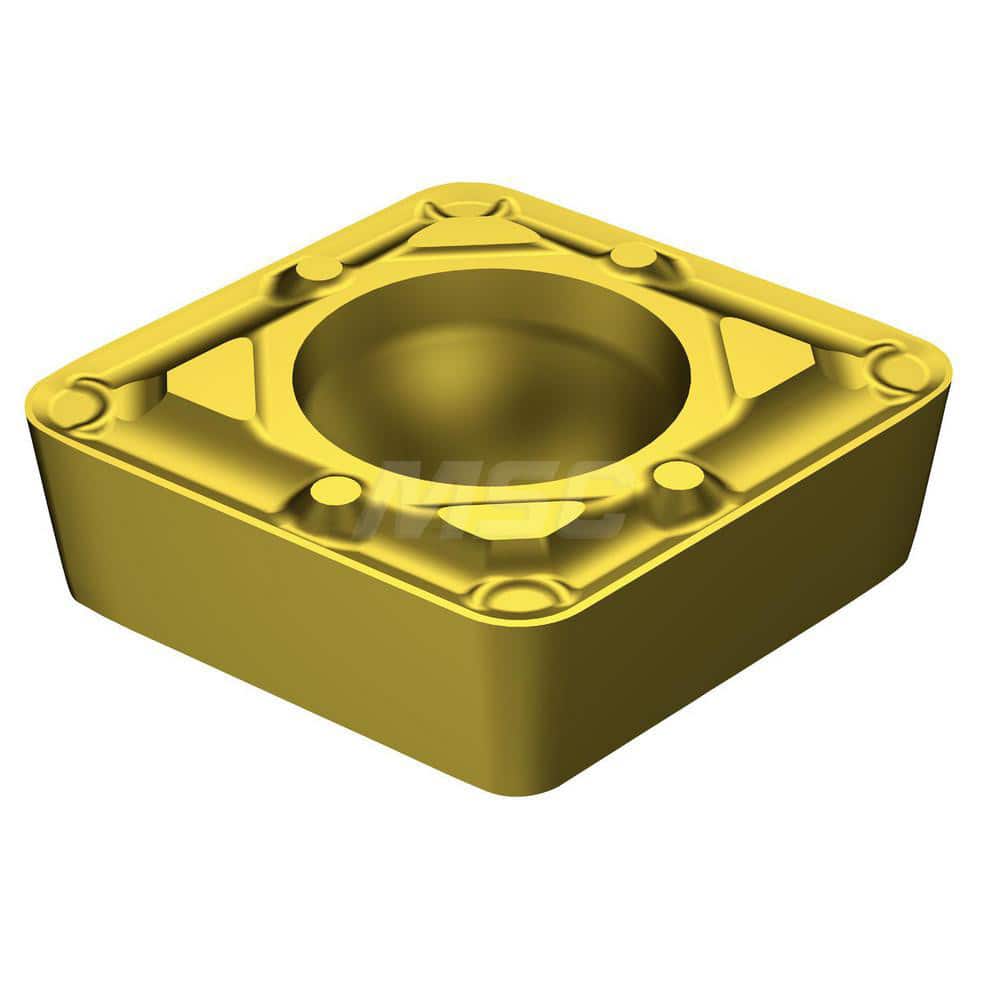

CCMT32.52-WF 3005 Carbide Turning Insert TiCN/AI2O3/TiN Finish, 8.87mm Long, 3/8″ Inscribed Circle, 1/32″ Corner Radius, 80° Diamond
Item #: 02407492
Brand: Sandvik Coromant
Model #: 5724520
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 32.52 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 3005 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CoroTurn 107 |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Wiper Edge | Yes |
| Insert Length (Decimal Inch) | 0.3493 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | CCMT3(2.5)2WF3005 |
| Iso Code | CCMT 09 T3 08-WF 3005 |
| Chip Breaker | WF |
| Coating/Finish | TiCN; TiN; AI2O3 |
 | |
| MSC Part # | 02407492 |
| Mfr Part # | 5724520 |
| Country of OriginCountry of Origin is subject to change | Sweden |
