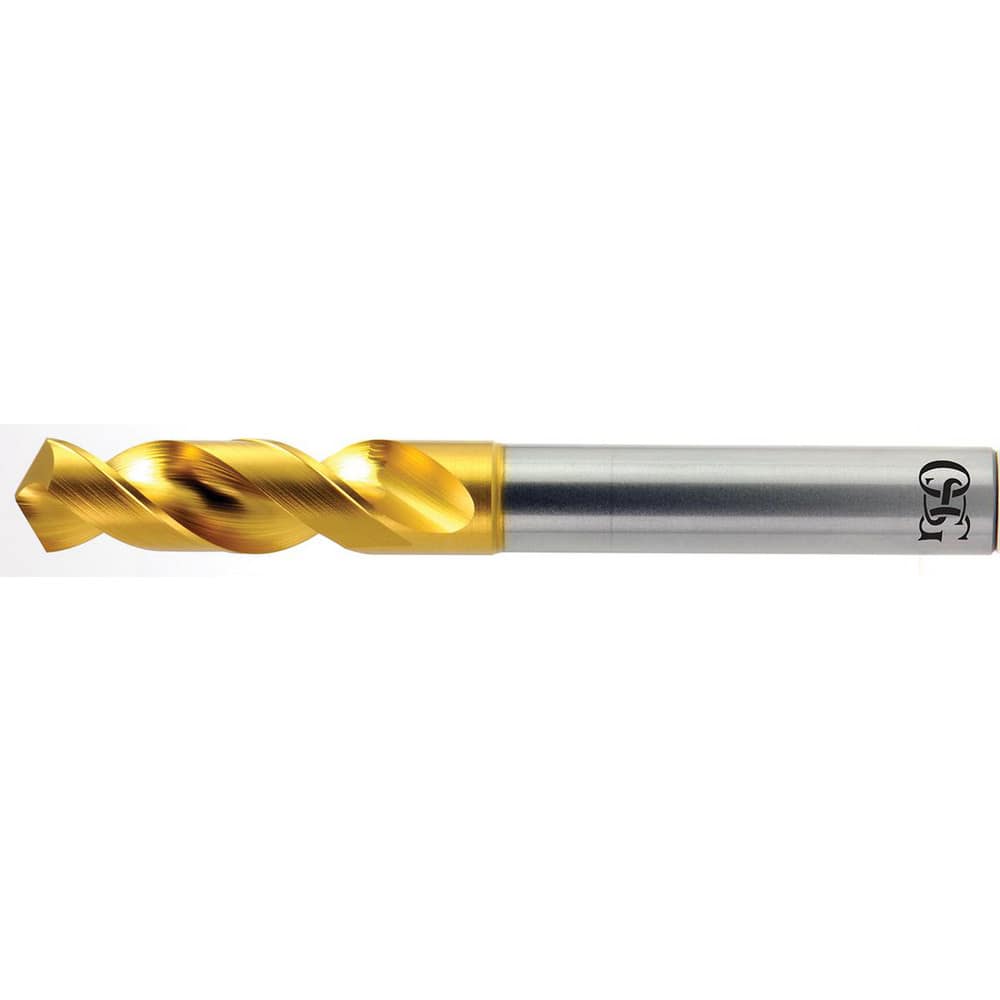

Screw Machine Length Drill Bit: 0.1449″ Dia, 130 °, High Speed Steel TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1100
Item #: 02287142
Brand: OSG
Model #: 8595368
Product Specifications
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 130 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Drill Bit Size (Decimal Inch) | 0.1449 |
| Overall Length (mm) | 52.00 |
| Overall Length (Decimal Inch) | 2.0472 |
| Shank Diameter (mm) | 4.00 |
| Series | 1100 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Flute Length (mm) | 20.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
