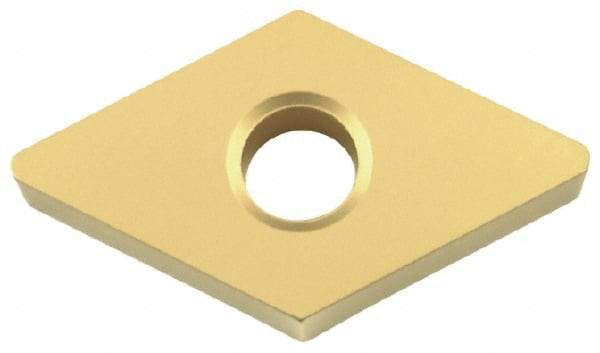

Sumitomo - DCMX21.51 Grade DA2200 Polycrystalline Diamond (PCD) Turning Insert - 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 02254100
Brand: Sumitomo
Model #: 16CD321
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | DCMX |
| Insert Size | 21.51 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | DA2200 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 7 |
| Included Angle | 55 |
| Insert Holding Method | Screw |
| Shape | Diamond |
