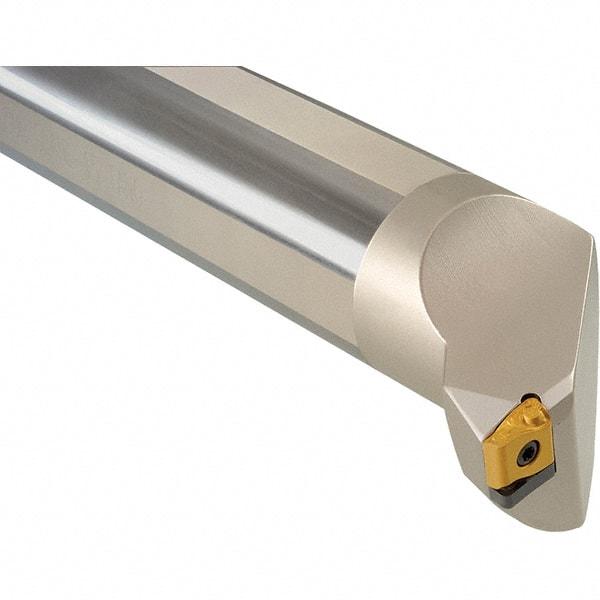

Iscar - 2.087" Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, S-SLAN Indexable Boring Bar - LNMX 1104.. Insert, Screw or Clamp Holding Method
Item #: 02242469
Brand: Iscar
Model #: 3602351
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SLAN |
| Series | Heliturn |
| Minimum Bore Diameter (Decimal Inch) | 2.0870 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | LNMX 1104.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.8700 |
| Rake Angle | -15 |
| Complete Insert Compatibility | LNMX 110408L-HM; LNMX 110408L-HT; LNMX 110412L-HM; LNMX 110412L-HT |
| Toolholder Material | Steel |
