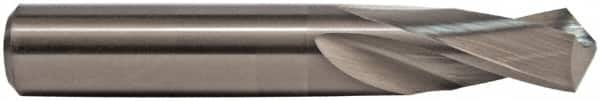

M.A. Ford - 0.413" 118° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 58252537
Brand: M.A. Ford
Model #: 20641300A
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALtima(R) is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima(R) is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4130 |
| Drill Bit Size (Letter) | Z |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | ALtima |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-1/4 |
| Flute Length (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (Decimal Inch) | 0.4130 |
| Specification Designation | Not Specified |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Number of Margins | 1.000 |
| Series/List | 206 |
| Additional Information | Modified Standard, Non-Returnable & Non-Cancelable |
