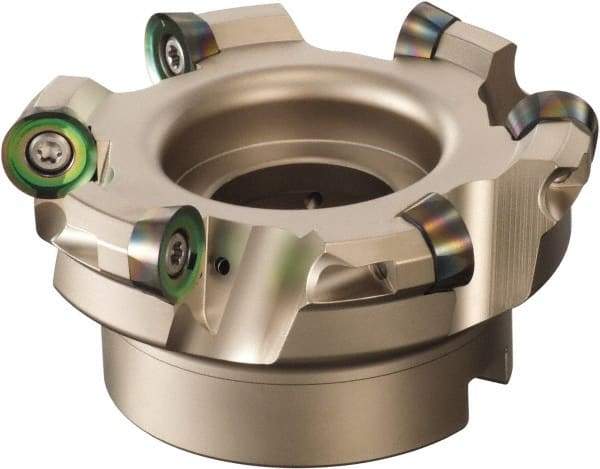

Sumitomo - 3" Cut Diam, 1/4" Max Depth, 1" Arbor Hole, 5 Inserts, QP.T 4312 Insert Style, Indexable Copy Face Mill - WRCX Cutter Style, 1-3/4 High, Series WaveMill
Item #: 02183713
Brand: Sumitomo
Model #: 2200W6B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.7500 |
| Series | WaveMill |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | QP.T 4312 |
| Cutter Style | WRCX |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | QPET 4312PPENS; QPMT 4312PPEN |
