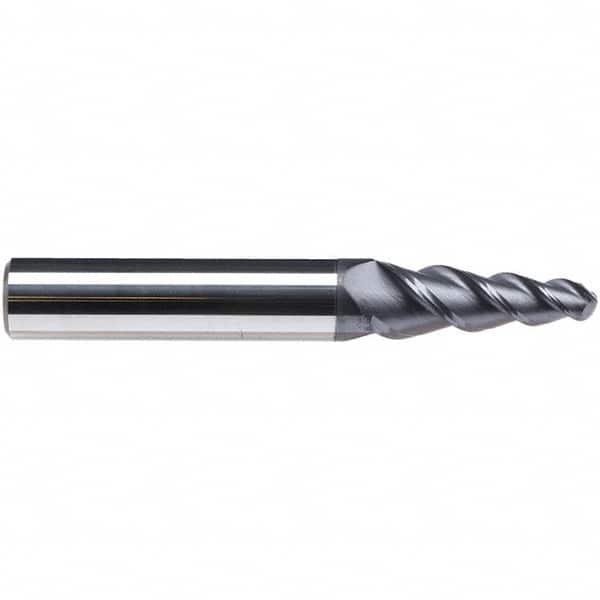

Emuge - 6° Taper Angle per Side, 3.8mm Small End Diam, 19mm LOC, Solid Carbide 3 Flute Tapered Ball End Mill - TiAlN Finish, 62mm OAL, 6mm Shank Diam, Spiral Flute, 45° Helix
Item #: 02183614
Brand: Emuge
Model #: 3440A.06010A
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| End Type | Ball |
| Taper Angle Per Side | 6.00 |
| Small End Diameter (mm) | 3.80 |
| Shank Diameter (mm) | 6 |
| Length of Cut (mm) | 19.00 |
| Number of Flutes | 3 |
| Helix Angle | 45 |
| Finish/Coating | TiAlN |
| Overall Length (mm) | 62 |
| Nose Radius (mm) | 1.00 |
| Flute Type | Spiral |
| Flute Direction | Right Hand |
| Series/List | 3440A |
