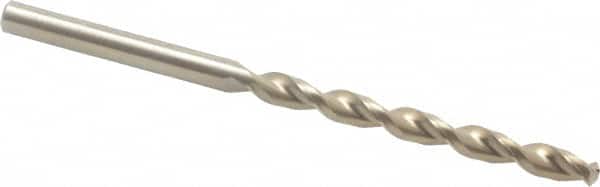

Cleveland - 3/8", 135° Point, Parabolic Flute, Cobalt Taper Length Drill Bit - Oxide/Gold Finish, 4-1/4" Flute Length, 6-3/4" OAL, Series 2575
Item #: 02147866
Brand: Cleveland
Model #: C16796
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used on low carbon, stainless steel and ferrous metals.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 3/8 |
| Drill Bit Size (Decimal Inch) | 0.3750 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Split Point |
| Flute Length (Inch) | 4-1/4 |
| Flute Length (Decimal Inch) | 4.2500 |
| Flute Length (mm) | 107.95 |
| Overall Length (Inch) | 6-3/4 |
| Overall Length (mm) | 171.45 |
| Overall Length (Decimal Inch) | 6.7500 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Material Grade | M42 |
| Series/List | 2575 |
