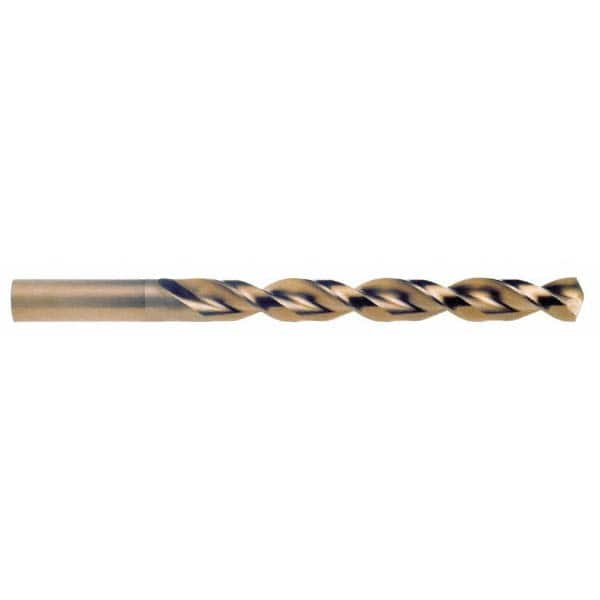

Jobber Length Drill Bit: 0.4724″ Dia, 135 °, Cobalt TiN Finish, 5.945″ OAL, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank
Item #: 02147643
Brand: Cleveland
Model #: C16722
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Drill Bit Size (mm) | 12.00 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (Decimal Inch) | 5.9450 |
| Flute Length (Decimal Inch) | 3.9760 |
| Drill Bit Diameter Tolerance | -0.0010 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 338 |
| Drill Bit Grade | Heavy-Duty |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| Material Grade | M42 |
| Specification Designation | DIN |
