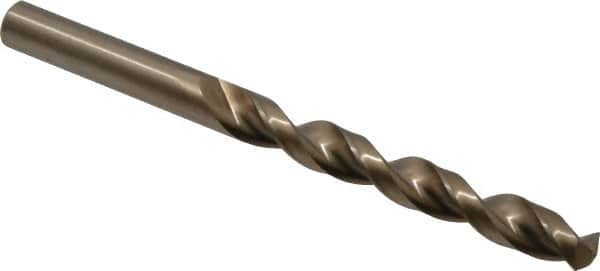

Cleveland - 11mm 135° Cobalt Jobber Drill - Oxide/Gold Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 5.591" OAL, Split Point
Item #: 02147346
Brand: Cleveland
Model #: C16608
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide/gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used on low carbon, stainless steel and ferrous metals.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 11.00 |
| Drill Bit Size (Decimal Inch) | 0.4331 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 94.00 |
| Flute Length (Decimal Inch) | 3.7008 |
| Overall Length (Decimal Inch) | 5.5910 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.4331 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0010 to 0.0000 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Drill Bit Grade | Heavy-Duty |
| Material Grade | M42 |
| Series/List | 2075 |
