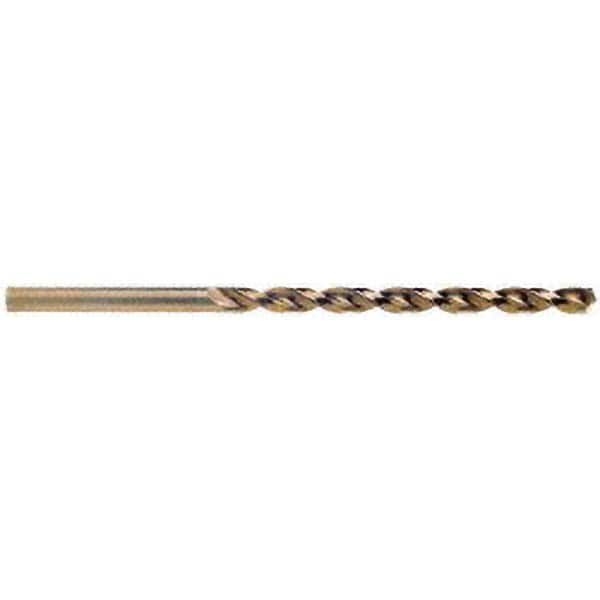

Jobber Length Drill Bit: 0.3228″ Dia, 135 °, Cobalt Oxide, Gold Finish, 4.606″ OAL, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank
Item #: 02147270
Brand: Cleveland
Model #: C16601
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3228 |
| Drill Bit Size (mm) | 8.20 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Oxide/Gold |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3228 |
| Overall Length (Decimal Inch) | 4.6060 |
| Flute Length (mm) | 75.00 |
| Flute Length (Decimal Inch) | 2.9528 |
| Drill Bit Diameter Tolerance | -0.0010 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 338 |
| Drill Bit Grade | Heavy-Duty |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.00 |
| Material Grade | M42 |
| Specification Designation | DIN |
