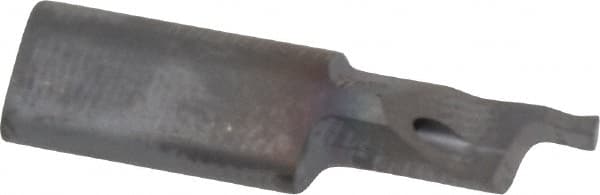

HORN - 0.039" Groove Width, 0.197" Min Hole Diam, 0.394" Max Hole Depth, Face Grooving Tool - 0.118" Projection, 0.984" OAL, 0.002" Radius, Solid Carbide, TiCN Finish
Item #: 01954395
Brand: HORN
Model #: R105.0510.1.8
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Groove Width (Decimal Inch) | 0.0390 |
| Projection (Decimal Inch) | 0.1180 |
| Minimum Hole Diameter (Decimal Inch) | 0.1970 |
| Maximum Hole Depth (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 0.9840 |
| Finish/Coating | TiCN |
| Radius (Decimal Inch) | 0.0020 |
| Manufacturer Grade | TI25 |
