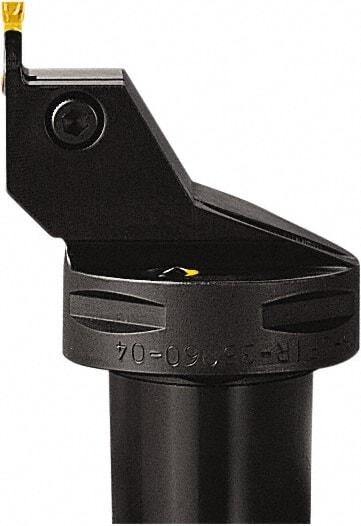

Seco - LC.. 3008.. Insert, 74.93mm Head Length, 8mm Min Groove Width, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size C6, Series Multi-Directional Turning (MDT), Seco-Capto
Item #: 01934819
Brand: Seco
Model #: 38106
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Multi-Directional Turning (MDT); Seco-Capto |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Insert Style | LC.. 3008.. |
| Head Length/Projection (mm) | 74.93 |
| Head Length/Projection (Decimal Inch) | 2.9500 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 44.96 |
| Center to Cutting Edge (Decimal Inch) | 1.7700 |
| Complete Insert Compatibility | LCGF 300804-0800-GG; LCGF 300804-0800-GS; LCGF 3008M0-0800-RP; LCGF 3008M0-1000-RP; LCMF 300804-0800-FT; LCMF 300808-0800-FT; LCMF 300808-1000-FT; LCMF 300812-0800-FT; LCMF 300812-1000-FT; LCMF 3008M0-0800-MP; LCMF 3008M0-1000-MP; LCMR 300808-0800-FT |
| Minimum Groove Width (mm) | 8.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 23.88 |
| Maximum Depth of Cut (Decimal Inch) | 0.9400 |
