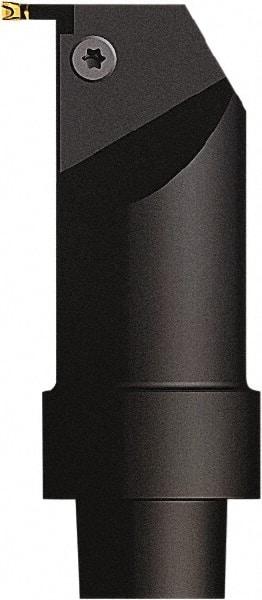

Seco - Left Hand Cut, Size C4, LC.. 1604.. Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 26.92mm Ctr to Cutting Edge, 89.92mm Head Length, Series Seco-Capto
Item #: 01934736
Brand: Seco
Model #: 38036
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 89.92 |
| Head Length/Projection (Decimal Inch) | 3.5400 |
| Insert Style | LC.. 1604.. |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 26.92 |
| Center to Cutting Edge (Decimal Inch) | 1.0600 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Neck Diameter (mm) | 39.88 |
| Neck Diameter (Decimal Inch) | 1.5700 |
| Complete Insert Compatibility | LCGN 160404-0400E-LF; LCGN 160404-0400E25-LF; LCGN 160404-0400S-LF; LCGN 1604M0-0400E25-LF; LCGN 1604M0-0400S-LF; LCMF 160402-0400-FT; LCMF 160404-0400-FT; LCMF 160404-0400-MG; LCMF 160404-0400-MT; LCMF 160408-0400-FT; LCMF 160408-0400-MT; LCMF 1604M0-040 |
