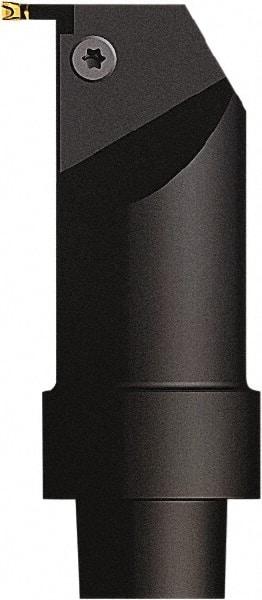

Seco - LC.. 1603.. Insert, 95mm Head Length, 3mm Min Groove Width, Modular Grooving Cutting Unit Head - Right Hand Cut, System Size C6, Series Multi-Directional Turning (MDT), Seco-Capto
Item #: 01934728
Brand: Seco
Model #: 38035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Multi-Directional Turning (MDT); Seco-Capto |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | LC.. 1603.. |
| Head Length/Projection (mm) | 95.00 |
| Head Length/Projection (Decimal Inch) | 3.7400 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 24.89 |
| Center to Cutting Edge (Decimal Inch) | 0.9800 |
| Minimum Hole Diameter (mm) | 44.96 |
| Minimum Hole Diameter (Decimal Inch) | 1.7700 |
| Complete Insert Compatibility | LCGN 160304-0300E-LF; LCGN 160304-0300E25-LF; LCGN 160304-0300S-LF; LCGN 1603M0-0300E-LF; LCGN 1603M0-0300E25-LF; LCGN 1603M0-0300S-LF; LCMF 160300-A125-MP; LCMF 160302-0300-FT; LCMF 160302-0300-MT; LCMF 160302-A125-FT; LCMF 160302-A125-MT; LCMF 160304-03 |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 6.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.2400 |
