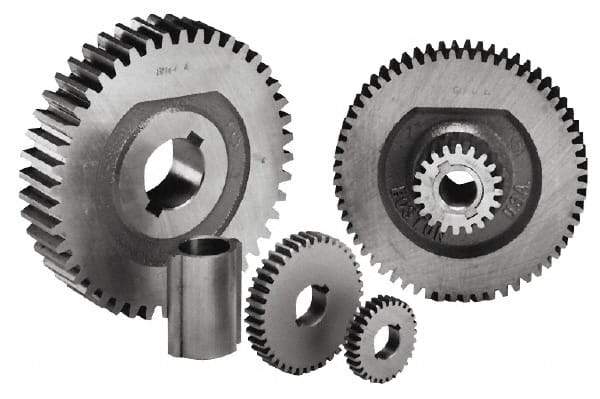

Boston Gear - 10 Pitch, 2-1/2" Pitch Diam, 2.7" OD, 25 Tooth Spur Gear - 1" Face Width, 1-1/4" Bore Diam, 14.5° Pressure Angle, Steel - Benchmark Tooling

Boston Gear - 10 Pitch, 2-1/2" Pitch Diam, 2.7" OD, 25 Tooth Spur Gear - 1" Face Width, 1-1/4" Bore Diam, 14.5° Pressure Angle, Steel


Item #: 01786896
Brand: Boston Gear
Model #: 10186
Exact Tooling IR#: 04

Product Specifications
Type Spur Gear
Number of Teeth 25
Pitch Diameter (Decimal Inch) 2.5000
Bore Diameter (Inch) 1-1/4
Bore Diameter (Decimal Inch) 1.2500
Material Steel
Face Width (Inch) 1
Pressure Angle 14.5
PSC Code 3020
$137.82
