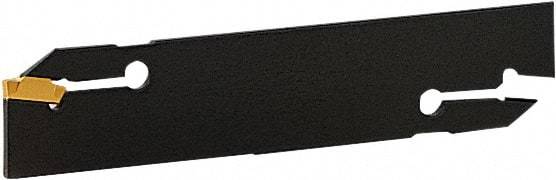

Seco - 1.26" Blade Height, 0.157" Blade Width, 5.9" OAL, Double End Indexable Cut-Off Blade - CFMN 32 Blade, MDT Series
Item #: 01736552
Brand: Seco
Model #: 53884
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (Decimal Inch) | 0.1570 |
| Blade Overall Length (Decimal Inch) | 5.9000 |
| Blade Style | CFMN 32 |
| Insert Style | LC.. |
| Insert Width (mm) | 5.00 |
| Insert Width (Decimal Inch) | 0.1969 |
| Series | MDT |
| Insert Seat Size | 5 |
| Tool Block/Toolholder Style | 150.10 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.8900 |
| Cutting Height (Decimal Inch) | 0.9840 |
| Insert Corner Radius (Decimal Inch) | 0.0160-0.0310 |
| Complete Insert Compatibility | LC.. 1605.. |
