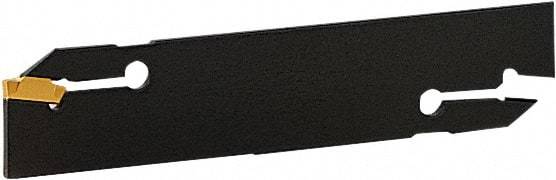

Seco - 1.024" Blade Height, 3/32" Blade Width, 4.33" OAL, Double End Indexable Cut-Off Blade - CFMN 26 Blade, MDT Series
Item #: 01736537
Brand: Seco
Model #: 53878
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Blade Height (Decimal Inch) | 1.0240 |
| Blade Width (Decimal Inch) | 0.0940 |
| Blade Overall Length (Decimal Inch) | 4.3300 |
| Blade Style | CFMN 26 |
| Insert Style | LC.. |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Series | MDT |
| Insert Seat Size | 3 |
| Tool Block/Toolholder Style | 150.10 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 0.9840 |
| Cutting Height (Decimal Inch) | 0.8420 |
| Insert Corner Radius (Decimal Inch) | 0.0080-0.0160 |
| Complete Insert Compatibility | LC.. 1603.. |
