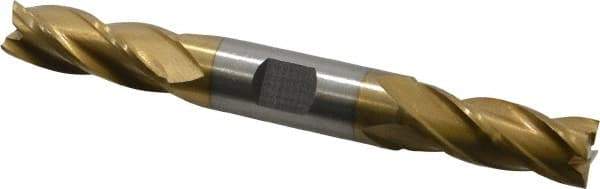

Interstate - 9/16", 1-3/8" LOC, 5/8" Shank Diam, 5" OAL, 4 Flute, High Speed Steel Square End Mill - Double End, TiN Finish, Spiral Flute, 30° Helix, Right Hand Cut, Right Hand Flute
Item #: 01724368
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 9/16 |
| Mill Diameter (Decimal Inch) | 0.5625 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1-3/8 |
| Length of Cut (Decimal Inch) | 1.3750 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Shank Diameter (Inch) | 5/8 |
| Single or Double End | Double |
| Overall Length (Inch) | 5 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30.00 |
| Flute Type | Spiral |
| Chipbreaker | No |
| Extended Reach | No |
