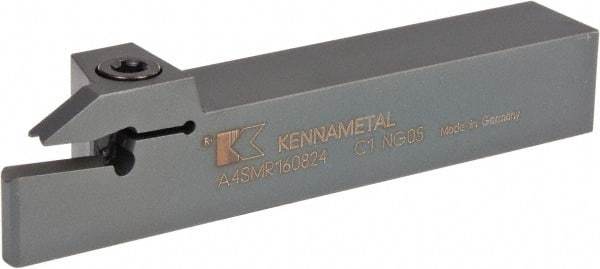

Kennametal - External Thread, 0.94" Max Depth of Cut, 8mm Min Groove Width, 6" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, A4..08.. Insert Style, A4SM Toolholder Style, Series A4
Item #: 01724046
Brand: Kennametal
Model #: 2263186
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 24.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9400 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Minimum Groove Width (mm) | 8.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Series | A4 |
| Toolholder Style | A4SM |
| Insert Compatibility | A4..08.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (mm) | 34.00 |
| Head Height (Decimal Inch) | 1.3400 |
| Head Length (mm) | 46.00 |
| Head Length (Decimal Inch) | 1.8100 |
| Shank Length (Decimal Inch) | 4.2008 |
| Shank Length (mm) | 106.70 |
