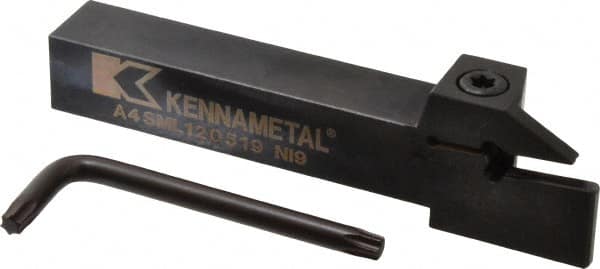

Kennametal - A4SM, External, Left Hand, 19mm Max Depth of Cut, 5mm Min Groove Width, Indexable Grooving Tool Holder - A4..05.. Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 5" OAL
Item #: 01723733
Brand: Kennametal
Model #: 1953328
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (mm) | 19.00 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Minimum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 127.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | A4SM |
| Insert Compatibility | A4..05.. |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | A4 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 5 |
| Head Height (Decimal Inch) | 1.1000 |
| Head Height (mm) | 28.00 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5700 |
| Shank Length (mm) | 87.00 |
| Shank Length (Decimal Inch) | 3.4252 |
