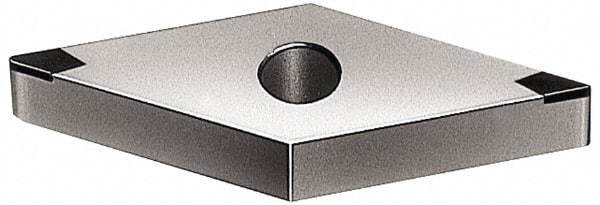

Tungaloy - 2QP-VNGA332 Grade BX310 PCBN Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 01689751
Brand: Tungaloy
Model #: 6818027
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VNGA |
| Insert Size | 332 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | BX310 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Negative |
| Relief Angle | 0 |
| Included Angle | 35 |
| Series | QP Mini-Tip |
| Shape | Diamond |
