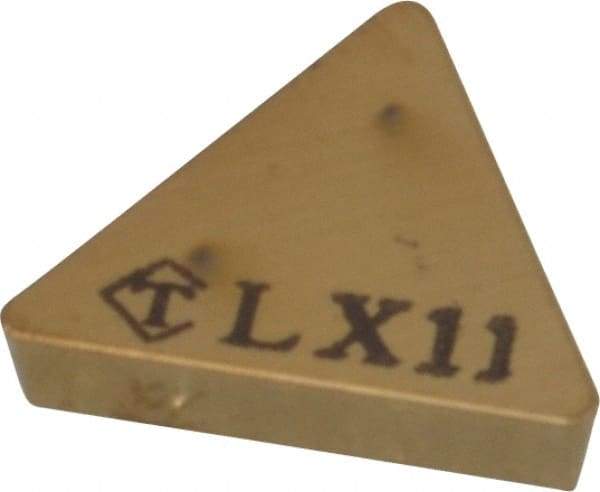

Tungaloy - TPGN322 Grade LX11 Ceramic Turning Insert - TiN Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 01686344
Brand: Tungaloy
Model #: 6808848
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | TPGN |
| Insert Size | 322 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | LX11 |
| Coating | TiN |
| Material Grade | C7/C8 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Shape | Triangle |
