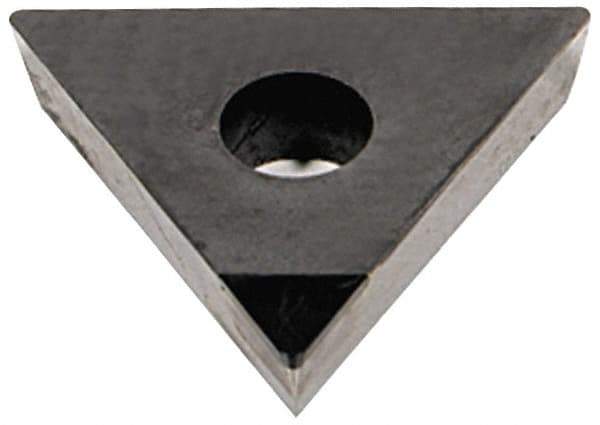

Tungaloy - TPGA222 Grade DX140 Polycrystalline Diamond (PCD) Turning Insert - 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 01686302
Brand: Tungaloy
Model #: 6808778
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | TPGA |
| Insert Size | 222 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | DX140 |
| Material Grade | C4 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
