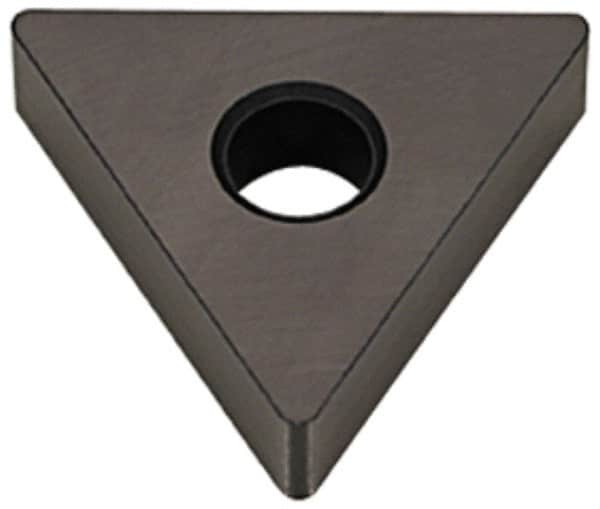

Tungaloy - TNMA333 Grade FX105 Ceramic Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 01683390
Brand: Tungaloy
Model #: 6808273
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | TNMA |
| Insert Size | 333 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | FX105 |
| Coating | Uncoated |
| Material Grade | C2/C3/C4 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Included Angle | 60 |
| Shape | Triangle |
