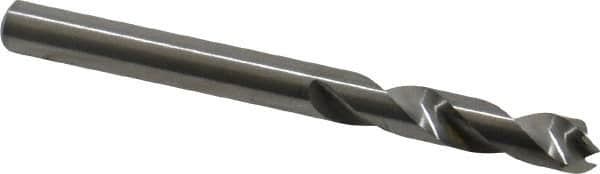

M.A. Ford - 3/16" Spiral Flute Solid Carbide Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 15/16" Flute Length, 2-3/16" OAL, Standard Point, Straight Shank
Item #: 01672849
Brand: M.A. Ford
Model #: 20718750
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 15/16 |
| Overall Length (Inch) | 2-3/16 |
| Point Type | Standard |
| Spiral Type | Fast Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Web Thinning | Web-Thinned |
| Series/List | 207 |
