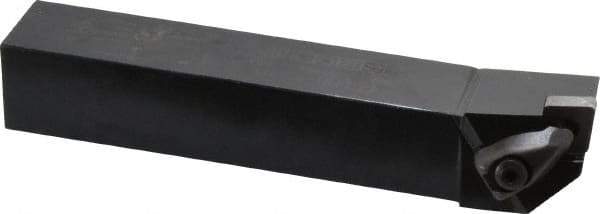

Seco - Indexable Turning Toolholders Hand of Holder: Right Hand Toolholder Style: DCLN
Item #: 01642776
Brand: Seco
Model #: 32303
Exact Tooling IR#: 04
Product Specifications
Indexable Turning Toolholders; Hand of Holder: Right Hand ; Toolholder Style: DCLN ; Rake: Negative ; Series: Clamp Lock ; Shank Width (Inch): 1 ; Shank Width (Decimal Inch): 1.0000
| Hand of Holder | Right Hand |
| Toolholder Style | DCLN |
| Rake | Negative |
| Series | Clamp Lock |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CN..43. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.3000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
