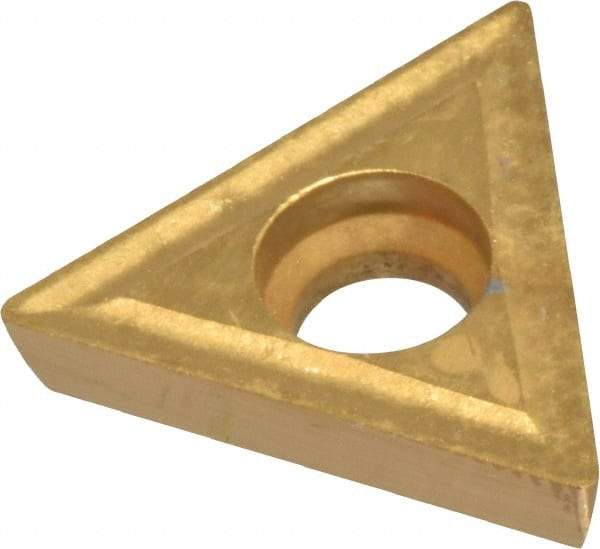

Interstate - TPGH321 HF Grade TCN55 Carbide Turning Insert - TiN Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 01608918
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGH |
| Insert Size | 321 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TCN55 |
| Coating | TiN |
| Material Grade | C5 |
| Chip Breaker | HF |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Rake | Positive |
| Rake Angle | 9.5 |
| Relief Angle | 11 |
| Primary Workpiece Material | P; M |
| Included Angle | 60 |
| Series | American Value |
| Shape | Triangle |
