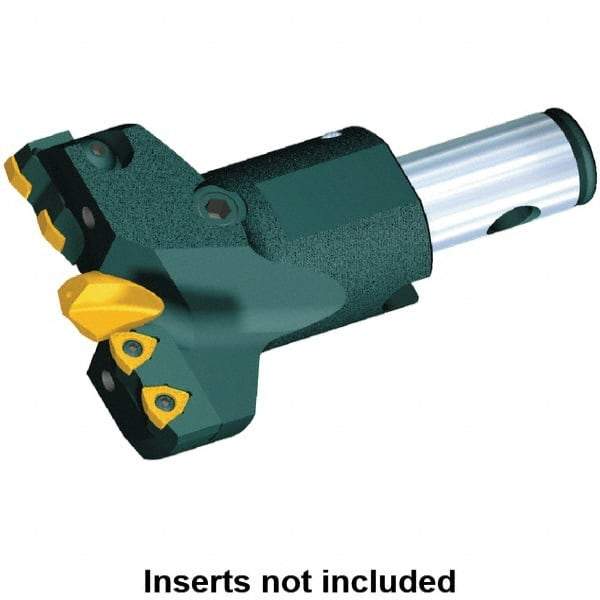

Kennametal - Series HTS DFT, Head Connection 13B, 55mm Max Diam Pilot Drill Head - B510S08000 Pilot Drill, 8mm Pilot Drill Diam, 4 Nonpilot Inserts, 50mm Head Length
Item #: 01589324
Brand: Kennametal
Model #: 1245750
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS DFT |
| Head Connection Size | 13B |
| Pilot Type | Pilot Drill |
| Maximum Drill Diameter (mm) | 55.00 |
| Maximum Drill Diameter (Decimal Inch) | 2.1654 |
| Pilot Drill Diameter (mm) | 8.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.3150 |
| Number of Non-Pilot Inserts | 4 |
| Pilot Drill Style | B510S08000 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Drill Head Style | 3.76 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Cartridge |
| Overall Length (mm) | 85.00 |
| Overall Length (Decimal Inch) | 3.3465 |
| Back of Head Diameter (mm) | 28.00 |
| Back of Head Diameter (Decimal Inch) | 1.1024 |
| Includes | Adjusting Screw; Clamping screw |
