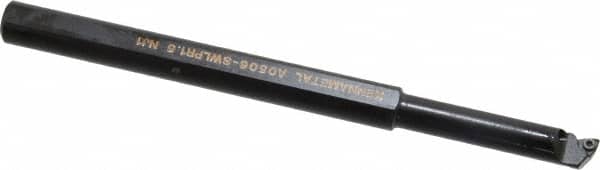

Kennametal - 10.54mm Min Bore Diam, 127mm OAL, 3/8" Shank Diam, A-SWLP Indexable Boring Bar - 1.63" Max Bore Depth, WP.. Insert, Screw Holding Method
Item #: 01584846
Brand: Kennametal
Model #: 1094707
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SWLP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 10.54 |
| Minimum Bore Diameter (Decimal Inch) | 0.4150 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.6300 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | WP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.2190 |
| Insert Thickness (Inch) | 5/64 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.0940 |
| Complete Insert Compatibility | WP.. 1.51.21 |
| Toolholder Material | Steel |
