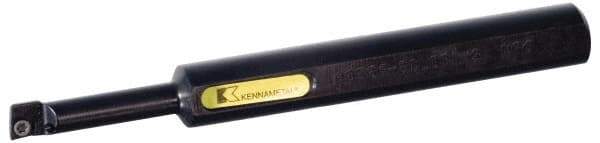

Kennametal - 5.94mm Min Bore Diam, 64mm OAL, 12mm Shank Diam, E-SCLD Indexable Boring Bar - 25.4mm Max Bore Depth, CD.. Insert, Screw Holding Method
Item #: 01583244
Brand: Kennametal
Model #: 1930410
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SCLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 5.94 |
| Minimum Bore Diameter (Decimal Inch) | 0.2339 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 25.40 |
| Overall Length (mm) | 64.00 |
| Overall Length (Decimal Inch) | 2.5197 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Insert Compatibility | CD.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 3.02 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Rake Angle | 5 |
| Coolant Hole Diameter (mm) | 3.18 |
| Coolant Hole Diameter (Decimal Inch) | 0.1252 |
| Complete Insert Compatibility | CD.. S4T002 |
| Toolholder Material | Carbide |
